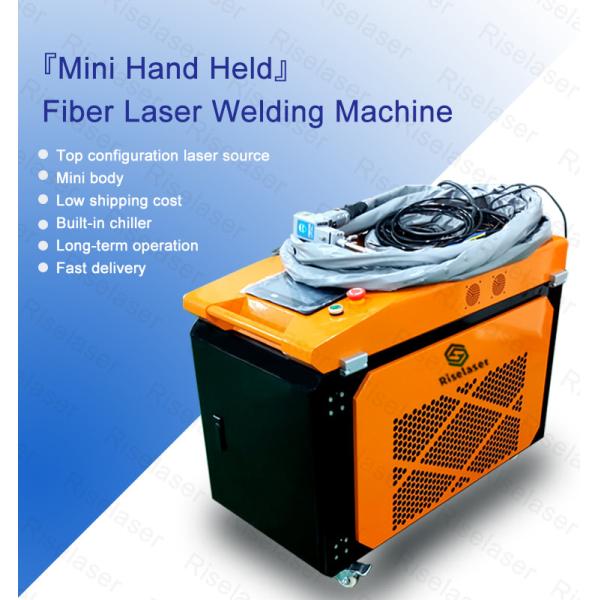

CW Fiber Mini Laser Soldering Machine 1000W 1500W 2000W For Aluminum Copper SS

Name: CW Fiber Mini Laser Soldering Machine 1000W 1500W 2000W For Aluminum Copper SS
Brand: Riselaser
Price: 1 USD

Wholesale CW Fiber Mini Laser Soldering Machine 1000W 1500W 2000W For Aluminum Copper SS from china suppliers

Brand Name : Riselaser

Model Number : RL-F1000W

Certification : ISO, CE

Place of Origin : Shenzhen, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 SET/WEEK

Delivery Time : 5-9 working days

Packaging Details : PLYWOOD BOX

Key words : Mini laser soldering machine

Key words 2 : SS Soldering

Application material : Aluminum Copper SS soldering

Laser type : CW fiber laser

Laser Head Brand : OSPRI, WSX, QILIN

With wire feeder : Yes

Laser Power : 1000w 1500w 2000w

Laser source : Max/RECI/Raycus/GW

Machine weight : 120KG

Cooling system : Built-in water chiller

Fib1500Wer wire length : 10M-15M

Warranty : 1 year

Contact Now

Mini laser soldering machine 1000W 1500W 2000W SS Soldering

Higher efficiency and lower maintenance costs

The electro-optical conversion rate is as high as 45% or more, which is 15 times
Higher than the solid-state YAG laser (3%), its power stability is ±0.3%.
The life of the laser source can reach more than 100,000h, and it is basically maintenance-free.

Mini laser soldering machine 1000W 1500W 2000W

Laser System	RL-F1000	RL-F1500
Laser Type	1080nm Fiber Laser
Nominal Laser Power	1000W	1500W
Cooling System	Water Cooling
Way of working	Continuous / Modulation
Speed range of welder	0~120 mm/s
Focal Spot Diameter	0.5mm
Ambient temperature range	15~35 ℃
Environmental humidity range	<70% without condensation
Welding thickness	0.5-3mm
Welding gap requirements	≤1.2mm
Operating Voltage	AV220V
Packing Dimensions	1007476cm
Packing Weight	90kg
Fiber length	Standard 10m, the longest customized length15m

Machine structure

Machine components

Machine dimension

Machine details

CW Fiber Mini Laser Soldering Machine 1000W 1500W 2000W For Aluminum Copper SS

Higher weld strength
In order for the weld to have high strength, a balance must be achieved and maintained between penetration and root pass width. The ratio of depth to width should not exceed 1 to 1.2. This ensures that shrinkage stresses are evenly distributed in all directions as the weld metal solidifies. The laser weld seam is not only narrow, but also meets the above-mentioned proportions well.

CW Fiber Mini Laser Soldering Machine 1000W 1500W 2000W For Aluminum Copper SS

Higher Precision Welding
The laser beams in laser welding can be tightly controlled to achieve micro-welding, even on small workpieces. Having a 0.025mm precision as compared to other welding processes, this will be hard to match.

CW Fiber Mini Laser Soldering Machine 1000W 1500W 2000W For Aluminum Copper SS

Package

Main machine + wire feeder in Plywood case, the weight is 163KG only
